PRODUCTS & SERVICES Pumps, Motors, and Drive Systems

May 1, 2004
Baldor Electric offers almost 300 industrial pump motors from stock. The company's pump motor line includes single and three phase TEFC and ODP Jet Pump Motors...

Pump motors

Click here to enlarge image

Baldor Electric offers almost 300 industrial pump motors from stock. The company's pump motor line includes single and three phase TEFC and ODP Jet Pump Motors; ODP Square Flange Pump Motors; single and three phase TEFC and ODP Close-Coupled Pump Motors, TENV and TEFC Washdown Duty Closed-Coupled Pump Motors; Explosion Proof Close-Coupled Pump Motors; single and three phase Jet Pump Explosion Proof Pump Motors; and three phase Shaft Pump Motors. All the motors are ready for immediate delivery from over 30 stocking warehouses across the U.S. and Canada.

Baldor Electric Co.
Fort Smith, AR
Tel: 800-828-4920
Web: www.baldor.com

Slurry pump

Click here to enlarge image

A heavy duty submersible pump designed to handle various types of slurries has been introduced by ITT Flygt. Designated as the 5150, the pump is ideal for use in power plants for bottom ash, refineries for petroleum coke, steel manufacturing and most any other application where solid granules are present, which can rapidly erode pump volutes, impellers and other wear parts. The slurry pump incorporates a design that not only lowers operating and maintenance costs, but reduces initial investment costs as well. To improve performance, the number of parts in the pump were greatly reduced and the design radically simplified.

ITT Flygt Corp.
Trumbull, CT
Tel: 203-380-4700
Web: www.flygtus.com

Elbow flow conditioners

Click here to enlarge image

Vorel 90-Degree Elbow Flow Conditioners from the Vortab Co. increase pump performance and reduce pump maintenance by eliminating cavitation and improving flow profiles leading into pumps, which reduces pump repair costs and extends pump life. No added space is taken up in installation as the conditioners replace the last remaining upstream elbow in the line. The conditioned flow stream enters the pump in a uniform and equally distributed pattern that results in increased pump bearing life with decreased noise and cavitation and improved pump performance.

Vortab
San Marcos, CA
Tel: 760-736-6114
Web: www.vortab.com

Vertical turbine pump

Click here to enlarge image

Patterson's vertical turbine pump employs the latest design concepts and engineering technology in producing a highly efficient pump that is adaptable in a variety of industrial, municipal and power applications. It can be staged as necessary to meet desired pressure requirements. Non-fire pump application capacities are from 500 to 7,000 gpm, with up to 700 ft. TDH.

Patterson Pump Co.
Toccoa, GA
Tel: 706-886-2101
Web: www.pattersonpumps.com

Plastic pump

Click here to enlarge image

The new SS8 all-plastic, vertical, immersible pump from Hayward has been designed for easy service. The pumps feature a special tear-drop locking design that allows the system operator to quickly remove just the pump core for service. The pump body stays connected to the piping system. The pump can handle flow rates to 80 gpm and up to 45 feet of total dynamic head. It features a seal-less design that eliminates leaking. A PTFE fume barrier protects the motor end-bell and bearings from corrosion caused by vapor or fumes.

Hayward Industrial Products
Elizabeth, NJ
Tel: 908-351-5400
Web: www.haywardindustrial.com

Tubing pumps

Click here to enlarge image

Watson-Marlow Bredel, a manufacturer of peristaltic pumps, has introduced its 520 NEMA 4X line of tubing pumps. With a NEMA 4X washdown sealed enclosure, the new pumps offer reliability and performance under harsh metering conditions. Designed for metering, dosing and transferring of corrosive or sensitive fluids, the series is ideal for chemical metering in water and wastewater treatment applications. For metering sodium hypochlorite, the hypochlorite only contacts the inner wall of the tube.

Watson-Marlow Bredel Pumps
Wilmington, MA
Tel: 800-282-8823
Web: www.watson-marlow.com

Hydraulic submersible pump

Click here to enlarge image

A new hydraulic driven submersible pump from Godwin Pumps, the Heidra® 150VSG, handles thick, solids laden liquids with solids up to 5'' in diameter. A remote actuated "slurry gate" enables the pump to be used as a mixer in applications where sludges are so thick they are initially unpumpable. After mixing to a pumpable consistency, the gate can be closed and the sludge pumped away. Uses include industrial wastewater treatment plant sludge tank cleaning and emptying. For durability, the Heidra 150VSG is designed with a cast iron pumpend and a cast chromium steel vortex impeller.

Godwin Pumps
Bridgeport, NJ
Tel: 856-467-3636
Web: www.godwinpumps.com

Grinder pumps

Click here to enlarge image

Pumpex offers a line of wastewater grinder pumps for a variety of applications, including food processing. The pumps are available in single or three-phase configurations that handle heads up to 140 feet and flows up to 70 gpm. The hardened cutter assembly features a specially designed shredder and a wear-resistant impeller. Also available are single and three-phase pumps designed for handling particulate-laden high head, low flow up to 20,000 gpm. The company's pumps are designed with SmartSeal™ technology, a cartridge mechanical seal that isolates the pump cooling system from the particulate-laden effluent.

Pumpex Inc.
Somerville, NJ
Tel: 908-927-0800
Web: www.pumpex.com

Strainer

Click here to enlarge image

Designed for installation on the pump suction line, Orival's ORS series strainer provides protection for pumps and other equipment by removing large particles before they enter the system. The strainer cleans itself continuously to ensure debris-free water to the system. Units are available in 4" through 16" line sizes to handle flow rates up to 5,300 gpm. They are available with 1200 or 2500 micron screens. Units can be installed in parallel to handle any flow rate.

Orival, Inc.
Englewood, NJ
Tel: 800-567-9767
Web: www.orival.com

Sampling pump

Click here to enlarge image

Solinst's new Peristaltic Pump offers simpler operation, more stable flow rates and a longer battery life. The sampling pump is lightweight and compact with easy access controls. The metal case is robust, water resistant, and has no grates or openings. The pumps are ideal for sampling to depths of 33' at sea level or below. The variable speed controller allows for purge rates as high as 3.5 L/min and sampling rates as low as 40 ml/min.

Solinst Canada Ltd.
Georgetown, ON Canada
Tel: 905-873-2255
Web: www.solinst.com

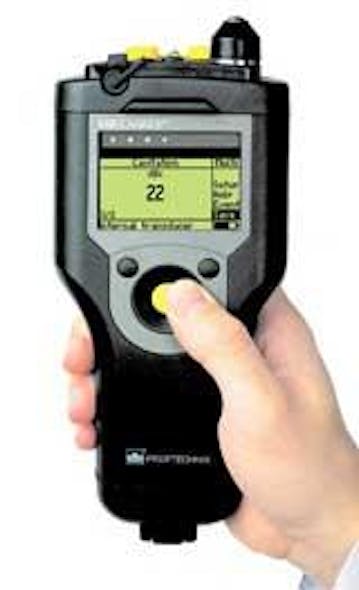

Pump cavitation measurement

Click here to enlarge image

Vibscanner®, offered by Ludeca measures cavitation noise to evaluate a pump's condition. The data can be trended over time on screen or with the Omnitrend® PC software. The product also measures other critical machine parameters of rotating equipment such as vibration, temperature, RPM, shock pulse for bearing damage and lubrication condition, process parameters, MIMOSA inspection codes, spectrum, time waveform, balancing and alignment.

Ludeca, Inc.
Miami, FL
Tel: 305-591-8935
Web: www.ludeca.com

Pulsation control

Click here to enlarge image

The Revolution pulsation dampener from Blacoh Fluid Control features threaded housings that screw together - eliminating the need for metal fasteners that are subject to the damaging effects of corrosive environments. The pulsation dampener is available in PVC construction, with a PVC bladder for complete chemical compatibility with many corrosive chemicals, including sodium hypochlorite.

Blacoh Fluid Control
Riverside, CA
Tel: 909-342-3100
Web: www.blacoh.com

Metering pumps

Click here to enlarge image

G.H. Stenner has introduced the SVP Series, a new variable speed peristaltic metering pump with optional 4-20 mA input for automatic control. Capable of 1.66 gph at 100 psi and 3.5 gph at 25 psi, the pumps are designed to respond directly to a 4-20 mA input signal from water treatment controls including pH and ORP monitors to maintain proper water chemistry and treatment of effluent discharge water.

G.H. Stenner & Co., Inc.
Jacksonville, FL
Tel: 800-683-2378
Web: www.stenner.com

Pump packages

Click here to enlarge image

Milton Roy has introduced RoyPak, a pre-engineered standard system package available in both PVC and metal back planes pre-configured to match the company's pump line. These off-the-shelf, user-specified systems are applicable for chemicals in water and wastewater treatment such as sodium hypochlorite, sodium hydroxide and ferric chloride. They are also suitable for process chemical feed and dosing systems in industrial and commercial processes. The systems are offered in one and two pump configurations specific to flow, pressure and chemical requirements.

Milton Roy
Ivyland, PA
Tel: 215-441-0800
Web: www.miltonroy.com

Pump load monitor

Click here to enlarge image

ITT PumpSmart Control Solutions has introduced the PS20 load monitor to protect pump and water/wastewater processes from serious breakdowns by detecting abnormal over- and underload situations. Using the electric motor as a sensor, the monitor provides a solution that is simple to install and reliable in operation.

PumpSmart Control Solutions,
Div. of ITT Industries
Seneca Falls, NY
Tel: 315-568-7122
Web: www.itt.com

Progressive cavity pumps

Click here to enlarge image

Liberty Process offers a selection of spare parts for progressive cavity pumps. A large inventory of rotors, stators and seals are in stock for same day delivery. They are available in a wide variety of models, sizes and materials for the most commonly used progressive cavity pump designs. Only parts that meet or exceed ISO 9001 performance standards are offered.

Liberty Process Equipment, Inc.
Arlington Heights, IL
Tel: 847-640-7867
Web: www.libertyprocess.com

DAF pumps

Click here to enlarge image

EDUR Centrifugal DAF Pumps, offered by Shanley Pump, are designed for handling dissolved air flotation applications and liquid-gas mixtures. They are ideal for waste activated sludge thickening. The pumps can help produce better quality white water, which increases the percent solids of the float by more than 50% while reducing the amount of sludge sinking to the bottom of the DAF.

Shanley Pump & Equipment, Inc.
Arlington Heights, IL
Tel: 847-439-9200
Web: www.shanleypump.com

RTU/PLC

Click here to enlarge image

Bristol Babcock has introduced ControlWave Micro, the new cost effective RTU/PLC for pump, tank well and reservoir control. The device provides multiple pump scenarios for pump up and pump down control and scheduling. Individual pump parameters are available for start/stop setpoint, on-delay, lead/lag pump, runtime/rank control and emergency override.

Bristol Babcock Inc.
Watertown, CT
Tel: 860-945-2200
Web: www.bristolbabcock.com

Thermoplastic pumps

Click here to enlarge image

The new Vanton line of heavy duty self-priming, magnetically driven horizontal end suction centrifugal pumps is provided with all fluid contact structural components molded from solid homogeneous thermoplastics such as polypropylene and polyvinylidene fluoride (PVDF). Unlike metals, nonmetallic materials do not corrode.

Vanton Pump & Equipment Corp.
Hillside, NJ
Tel: 908-688-4216
Web: www.vanton.com

Diaphragm pump

Click here to enlarge image

Neptune Chemical Pump Co. has announced new liquid end options for the Series PZ Electronic Diaphragm pumps. Now available are Kynar (PVDF) and 316SS liquid ends, in addition to the original PVC and acrylic models. Kynar (PVDF) models are available with choice of EPDM, Viton, or Teflon seals. The Series PZ pulse metering pump is ideal for injection of a wide range of liquid materials, including chemicals, nutrients and disinfectants.

Neptune Chemical Pump Co.
Lansdale, PA
Tel: 888-363-7886
Web: www.neptune1.com

Pumping systems

Click here to enlarge image

The Flowtronex JTC is a pre-engineered, completely assembled, factory flow-tested pumping system for a variety of applications. Pre-manufactured subassemblies provide cost effective systems with unusually short lead times. Standard features include: UL Listed as a complete pumping system, high efficiency back pull-out end suction pumps and individual pump suction and discharge isolation valves.

Flowtronex PSI Inc.
Dallas, TX
Tel: 214-357-1320
Web: www.flowtronex.com

Metering pumps

Click here to enlarge image

The Alldos "Plus3 System" is the highlight of the Primus 208 pump range. This metering pump is especially designed for dosing very small volumes of chemicals that easily evaporate during pumping, like sodium hypochlorite. The pump "pre-vents" the gas and thus prevents likelihood of gas build up in the pumping chamber. An easy-to-handle calibrating system is integrated in the liquid end for exact adjustment of very low-flow ranges.

Alldos, Inc.
Marietta, GA
Tel: 770-956-7996

Pump communication

The Grundfos G100, when used in conjunction with the Grundfos CU3 Motor Protector, offers monitoring, data acquisition, control and integration of the company's submersible pumps and motors into SCADA and DCS systems. Alternatively, the G100 can be used stand-alone and accessed by either a local PC or remotely via modem. The company's submersible motors are equipped with built-in temperature sensors allowing monitoring of critical operating temperatures.

Grundfos Pump Corp.
Olathe, KS
Tel: 913-227-3477

Controller

USFilter Stranco Products has introduced the new Strantrol Feed Verification Controller (FVC), which provides monitoring and control for a large selection of metering pumps that accept pulse inputs. Once programmed, the controller maintains the user-set dosage without continued inspection and pump adjustments by operators. It is particularly effective for applications where pumps are remotely located and not easily accessible. The unit not only controls but also verifies the liquid chemical feed rate of the actual chemical dispensed.

USFilter Stranco Products
Bradley, IL
Tel: 815-929-4127
Web: www.usfilter.com

Metering pump drive

Click here to enlarge image

A new integrated DC motor and controller is available for the small metering, dosing and transfer pumps from seepex. These non-pulsating devices are ideal for polymer flocculants, NaOCl, NaOH, most acids, bases, water treatment chemicals, reagents and even viscous products to 100,000 cps. The 120 vAC powered controller provides current and internal circuitry for low-flow, run-dry and high-pressure protection devices. External electrical enclosures are not needed. Instruments are connected to the controller with standard 5-pin electrical connectors.

seepex, Inc.
Enon, OH
Tel: 800-695-3659
