May 1, 2011

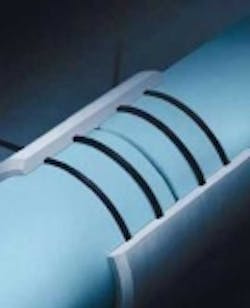

CertainTeed Certa-Lok™ C900/RJ PVC Pipe is designed for use in directional drilling and other restrained joint applications.
PVC pipe

CertainTeed Certa-Lok™ C900/RJ PVC Pipe is designed for use in directional drilling and other restrained joint applications. The pipe requires no special heat-fusion equipment, saving contractors a significant amount of time and money. Its joints are assembled as the pullback continues, so streets remain open and clear. And compared to alternate thermoplastic materials, higher-strength PVC requires a much thinner wall to achieve the same pressure rating. Because of this, a smaller diameter pipe can often be used. CertainTeed, 866-284-7473, www.certainteed.com

PE piping

GF Piping Systems has introduced the chemically resistant PE100 Industrial Polyethylene Piping System, which is offered in a complete range of pipe, fittings, valves and fusion joining technologies. The new system features robust mechanical strength and high impact resistance throughout a wide temperature range and is especially suited for cold temperature applications as low as -58ºF. Suitable applications include fluid transport for process cooling water, industrial water treatment, bulk water distribution and chemical processing across a variety of industries. The system is available in pipe sizes from 2" to 36" with molded fittings from 2" to 12" and fabricated fittings from 14" to 36." GF Piping Systems, Tustin, CA, 800-854-4090, www.gfpiping.com

Expansion joints

The Force Balanced Flex-Tend® Flexible Expansion Joint from EBAA Iron can accommodate pressure-induced thrust forces. It uses an additional water chamber piston that acts in the equal and opposite direction of the imparting thrust and neutralizes the thrust forces. This allows designers to use flexible expansion joints in applications where thrust blocks or other force-restricting devices are not applicable. Force balanced joints also protect pipelines that serve structures from shear. EBAA Iron Inc., Eastland, TX, 800-433-1716, www.ebaa.com

Pipe protection

AA Thread offers a variety of pipe protection systems, including polyethylene encasements for ductile iron pipe, PVC pipe wrapping tapes, and PTFE thread seal tapes and sealants. All of its polyethylene encasements meet the standards set by ANSI/AWWA C105/A21.5. The company offers both 8 MIL linear low density as well as 4 MIL cross laminated high density polyethylene encasements in addition to the new 10 MIL cross laminated high density joint wrap, specifically designed for protecting all mechanical joints. AA Thread Seal Tape Inc., Wauconda, IL, 847-526-2120, www.aathread.comHDPE tensile tester

The new McElroy In-Field Tensile Tester gives contractors and pipeliners the ability to test high-density polyethylene (HDPE) butt fusion joints in the field. A hand-pump system safely tests coupons from pipes sized 2" IPS and larger. The tester also incorporates a template that is attached to the pipe to create a coupon through the use of a drill and reciprocating saw. The coupon is then inserted into the hand-pump tensile test unit that performs a destructive test to qualitatively pass or fail the joint. McElroy Manufacturing, Tulsa, OK, www.mcelroy.com

Polymer mortar pipe

Hobas centrifugally cast, fiberglass-reinforced, polymer mortar (CCFRPM) potable water pipes and joint gaskets have been tested and comply with NSF- 61 for drinking water components. The pipe is ideal for new construction and rehab. The company also manufactures CCFRPM pipe for sanitary sewers and other corrosive environments. Installation methods include direct bury, sliplining, microtunneling, jacking, tunnel lining and above ground. Non-pressure and pressure classes are manufactured in diameters from 18" - 110". The pipe's high strength-to-weight ratio, smooth surface and flush, push-together joints are ideal for sliplining. Hobas Pipe USA, Houston, TX, 800-856-7473

Pipe products

U.S. Composite Pipe South offers Flowtite® filament wound pressure pipe and Meyer® polymer concrete pipe products. Flowtite filament wound pressure pipe products are produced in diameters from 12" to 156", and depending on application may range in length from 16' to 40'. Flowtite products are proven effective for non-corrosive pipeline systems for direct bury, slipline and penstock projects, for gravity pressure/sewer, raw water, potable water and other industrial applications. Meyer polymer concrete pipe is available in a range of diameters from 18" to 102", in standard 10' sections. This non-corrosive product is ideally suited for micro-tunneling and jacking jobs. U.S. Composite Pipe South, Zachary, LA, www.uscpsouth.com

Drilling machines

Reed Drilling Machines cut or drill through the pipe wall of cast iron, ductile iron, C900 PVC and PE water mains via the corporation stop inserted into the service saddle while under pressure. They use Reed D series drill bits or hole cutters. The DM2100B drilling machine consists of the base unit, which allows the customer to purchase separately individual corporation adapters, drill or hole cutter adapters, along with necessary drills or hole cutters. With shell cutters and necessary adapters, these units can also be used on C900 PVC pipe. Reed Manufacturing, 800-666-3691, www.reedmfgco.com

Pipe couplings

Elster Perfection's Hydrosert® 1½" CTS and 2" CTS couplings are non-corrosive and feature a "no stress" design that separates and optimizes both the gripping and sealing areas of the fitting. Once assembled, the fitting is free to rotate on the pipe without affecting the water tight seal. This unique connection method results in leak-proof performance. The fittings are pressure rated to the design pressure of the piping to be connected, up to 200 PSIG. The product line is designed for HDPE water piping systems. Elster Perfection, Cleveland, OH, www.elster-perfection.com

Directional drilling

The horizontal directional drilling (HDD) division of Mears Group has over 25 drilling rigs and capabilities of up to 1.3 million pounds of pullback. The several world records for pull length, the company has the ability to install pipe up to 60 inches in diameter. Since its formation 40 years ago, Mears has developed from a small engineering company into an international turnkey pipeline company with over 500 employees operating thru Quanta Pipeline Services, a Fortune 500 company. Mears Group Inc., Houston, TX, 800-632-7727, www.mears.net

Fusible PVC

Underground Solutions provides infrastructure technologies for water and sewer applications. Its Fusible PVC™ pipe products are available in diameters from 4"-36", including Fusible C-900®, Fusible C-905®and FPVC®. They use patented technology to produce a fused monolithic, fully-restrained, gasket-free, leak-free piping system ideal for trenchless (horizontal directional drilling, pipe bursting and sliplining) or conventional "open-cut" installations. The company's Duraliner™ is a patented, close-fit pipeline renewal system that creates a stand-alone structural liner (exceeds Class IV AWWA M-28). Underground Solutions Inc., Poway, CA, 858-679-9551, www.undergroundsolutions.com

Couplings, flange adapters

Ford Meter Box has released new Restrained Flange Adapters (RFA) and Restrained Couplings (RC). The RFA is designed to restrain and connect plain-end pipe to a flanged connection while the RC restrains and connects two plain end pipes. Both products use the Ford SO-EZ gasket. The pre-lubricated gasket, in sizes 4"-12", attaches to the compression gland and allows both the RFA and the RC to be installed without disassembly. No gaskets to lubricate, no loose parts to fall in the trench and no complicated assembly. Insert the plain-end of the pipe; tighten the fasteners, twist-off the restraint screws and installation is complete. Ford Meter Box Co., Wabash, IN, 800-326-3487, www.fordmeterbox.com

Utility saw chain

PowerGrit® Utility Saw Chain allows the operator to cut ductile iron and other types of pipe from one position, in the ditch. The saw provides improved access to the cut with less excavation. Single-side access reduces excavation time, operator effort and total time to complete the job. Access from one position on a pipe and improved control of the cutting element provides improved ergonomics and operator safety. ICS, Blount Inc., Portland, OR, 503-653-4644, www.powergrit.com

Pipe bursting

Burst and replace water, sewer, gas and other pipes with the Grundoburst static pipe bursting system from TT Technologies. The system can pull in a variety of replacement pipe including PVC, DIP, ABS, cast iron, fusion welded HDPE and VCP jacking pipe. Pulled by a hydraulic bursting unit, the cutter head's special cutting wheels split the host pipe. Six models are available for bursting 2" through 54" pipes and larger. TT Technologies, Aurora, IL, 630-851-8200, www.tttechnologies.com

Joint restraints

Smith-Blair has added the Flange-Lock to its joint restraint product line. The product is a mechanical joint flanged coupling adapter with a Cam-Lock™ joint restraint. It can be used to connect and restrain flanged to plain end pipe. These are particularly useful when piping water and wastewater treatment plants. The adapter allows the pipe to completely pass through for easier installation. It is designed to fit 3" through 48" ductile iron or 3" through 36" ductile iron OD PVC pipe. Smaller and larger sizes are available, along with customized body lengths. The company offers a variety of transition combinations (i.e. 16" flanged coupling adapter with 14" restraint end). Smith-Blair Inc., Texarkana, AR, 870-773-5228, www.smith-blair.com
