Product Showcase

March 1, 2002
Telog has the solution for monitoring overflow sites around the clock.

Overflow monitoring

Click here to enlarge image

Telog has the solution for monitoring overflow sites around the clock. The company's family of CSO/SSO monitoring products will give alarm notification in the event of a potential or occurring overflow event. Each event is recorded with time stamp, level and duration. Data can be downloaded manually without entering confined spaces. Wireless data transfer also is available using cellular or CDPD via Telog's proprietary "buried in the road" antenna. Downloaded data can be formatted with Telogers for Windows to satisfy reporting needs.
Telog Instruments, Inc.
Victor, NY
Tel: 585-742-3000

Multi-hose pump

Click here to enlarge image

Seepex has introduced a new pump design. The new MAP, Multi-Hose Axial Flow Peristaltic Pump, combines the features of progressive cavity and peristaltic pump technologies. The patented design offers seal-less performance with fewer pulsations and longer hose life. The pump can transfer and meter up to six separate fluids simultaneously. Metering with less than one percent flow variation and a 100:1 turndown ratio is possible. The product range includes four models with performance options to 17 US gpm and 90 psig.
seepex, Inc.
Enon, OH
Tel: 800-695-3659


Click here to enlarge image

Superior Tank Co. specializes in the fabrication, erection, dismantling and repairing of API and AWWA bolted and welded steel tanks for oil, water and bulk storage. In addition, the company provides site work preparation including grading, excavating, structural concrete, masonry, pipeline and asphalt paving for the foundation of its tanks.
Superior Tank Co., Inc.
Santa Fe Springs, CA
Tel: 562-946-8804

Interactive communication system

Click here to enlarge image

RACO Manufacturing and Engineering Company announced the introduction of its Catalysttrademark Interactive Communications System, an HMI, wireless, remote, data logging and alarm notification system. It allows users to collect data from, monitor and adjust up to 256 off-site control points from a single location, to stay in touch while off site. The system features up to five megabytes of on-board memory, recording up to 740,000 data samples while monitoring alarms, channel site changes, indicators, meters, switches, and more.
RACO Manufacturing and Engineering Co.
Emeryville, CA
Tel: 800-722-6999

Open-channel flow

The American Sigma 980 Open-Channel Permanent Flow Meter uses three different level/flow sensing technologies and can also monitor pH, rainfall, and temperature. This provides the versatility required for a wide range of applications including surcharge flows or reversed flow conditions; weirs and flumes; and small-to-large channels. The meter features a flexible power supply and a large, easy-to-read graphics display. Data management includes logging of readings from three channels for 400 days.
American Sigma
Loveland, CO
Tel: 800-635-4567 (request #3445)

Dewatering/drying unit

Click here to enlarge image

The J-Vap system dewaters and dries product or waste streams in a simple, one-step operation. Advantages include low temperature drying, low energy consumption, and extremely low emissions. Any level of drying can be achieved by simply extending the drying time. The system is manufactured in sizes to accommodate almost any dewatering and drying need. Laboratory and on-site testing also are available.
USFilter Dewatering Systems
Holland, MI
Tel: 800-245-3006

RO performance monitor

Click here to enlarge image

The RO Performance Monitor from RODI Systems is a single instrument designed to monitor all of the necessary RO operating parameters including conductivity, pH (or ORP), temperature, flows, and pressures. The monitor calculates and logs all operating data including normalized permeate flow. It predicts when membrane cleaning is necessary and eliminates time-consuming data logging and normalization calculations.
RODI Systems Corp.
Aztec, NM
Tel: 505-334-5865

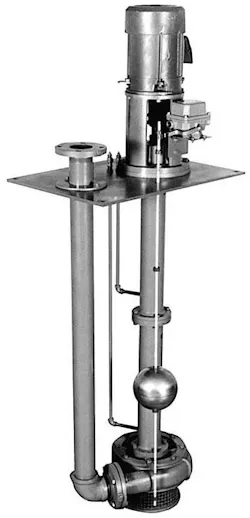

Vertical pump

Click here to enlarge image

Vertiflo Pump Company offers the Series 800 Industrial Vertical Immersion Sump Pump for service in water, corrosive chemicals and hazardous liquids. Applications include sump drainage, flood control and process drainage to meet EPA and OSHA requirements. Pumps are usually shipped in one-half to one-third the lead-time of other manufacturers. The Series 800 pumps are available in cast iron, 316 Stainless Steel or Alloy 20, for severe services with minimal maintenance at heads to 230 feet and temperatures to 350
Vertiflo Pump Company
Cincinnati, OH
Tel: 513-530-0888

PH/ORP sensors

Click here to enlarge image

GLI International is offering a new line of Differential Sensors for measuring pH and ORP in a wide range of applications. The pHDtrademark series uses the company's Differential Electrode Technology. Three measuring electrodes are used instead of the two contained in conventional pH sensors. The process and reference electrodes measure the pH differentially with respect to a third ground electrode. This technology is proven to provide accuracy, reduce reference junction fouling, and virtually eliminate ground loops, resulting in greater reliability with less downtime and maintenance.
GLI International, Inc.
Milwaukee, WI
Tel: 800-454-0263

Sewage pumps

Click here to enlarge image

Patterson's Type F and the ForcelineRegistered NCS Series non-clog sewage pumps are now offered with a sealing arrangement that requires no flush water. This new technology features EnviroSeal's SpiralTracRegistered throat bushing and Chesterton's Model 442trademark split mechanical seals to provide substantial savings in areas of maintenance and seal flush water. In addition, maintenance can now be performed to the seal and stuffing box without taking the pump out of service.
Patterson Pump Company
Toccoa, GA
Tel: 706-886-2101
