Fail-safe shut-down
TGO Technologies offers an Automatic Fail-Safe Shut-Down Valve System. The valve assembly attaches directly onto the chlorine valve of a 150# cylinder or ton container using only a standard chlorine wrench. A true fail-safe valve; it always fails to a closed position, doesn’t rely upon electrical or back-up power, and complies with the new Uniform Fire Code and International Fire Code standards.
TGO Technologies Inc.
Santa Rosa, CA
Tel: 800-543-6603
Web: www.tgotech.com
Cylinder closing system
Eclipse Actuators close toxic gas valves on 150 lb. and ton cylinders in less than one second when activated by remote sensors. These electronic actuators are “close only devices” requiring an operator to visit the site to determine the cause of the problem. The operator can then correct the condition, check the facility, and then manually reset the valve before restarting the gas system. The battery-operated actuator allows an operator or remote gas sensor to shut off leaking toxic gas without requiring the operator to enter the hazardous atmosphere. The chlorine valve can be opened or closed manually with the actuator installed and ready to operate. The actuators can be installed on existing, standard ton or cylinder hardware and can be tested by the operator on-site to assure correct operation. The latest Fire Codes recognize and approve the “automatic-closing fail-safe shutoff valve” system in lieu of scrubber treatment systems.
Halogen Valve Systems
Irvine, CA
Tel: 877-476-4222
Web: www.halogenvalve.com
Drum pumps
Seepex has introduced a new MDF progressive cavity Drum Pump, designed to empty open and closed drums, totes and tanks. The portable drum pumps are available with titanium internals, PTFE housing, and explosion proof motors. They are also available with an integrated drive that eliminates the need for control panels. The positive pressure on the suction side simplifies transfer of a wide range of fluids including corrosive and abrasive compounds of varying viscosities and solids content. The pumping elements are introduced directly into the fluid to lift it without the need to pull prime, making it an excellent choice for liquids with high vapor pressures like NaOCl. No additional air or hydraulic supply is required. Without sliding plungers, there is no friction buildup that can cause an unsafe temperature increase in the liquid.
seepex Inc.
Enon, OH
Tel: 937-864-7150
Web: www.seepex.com
Chemical feed station
New additions to the Assmann Chemical Feed Station family with overflow basins include the 175, 200 and 250 gallon capacity feed stations. The compact feed stations store small amounts of liquids and other chemicals, without the handling and disposal costs of steel drums. Constructed from high density crosslink or corrosion-resistant FDA compliant linear polyethylene, the feed stations are lightweight, strong and easy to handle. Available in capacities from 40 to 550 gallons, the feed stations feature easy-to-read volume markers and a pump shelf that supports most pumps and metering devices. Optional fiberglass shelves are available for pump and metering devices totaling 25 pounds or more. Polyethylene stands which may be stacked two high are optional. Other options include fittings in different sizes and materials to meet specific requirements and a wide range of color choices.
Assmann Corp. of America
Garrett, IN
Tel: 888-357-3181
Web: www.assmann-usa.com
Odor control
Calgon Carbon’s Minotaur OC is a high capacity pelletized activated carbon that has been developed specifically for odor removal from sewage treatment operations. The bituminous coal-based product provides very high adsorption capacity for H2S and adsorbs volatile organic compounds (VOCs) more effectively than other high capacity carbons. The product is an alternative to Calgon’s Centaur®HSV when potable water is not available for water wash/regeneration
Calgon Carbon Corp.
Pittsburgh, PA
Tel: 800-422-7266
Web: www.calgoncarbon.com
Flow pacing valve
The new-generation Regal SmartValve is a flow pacing valve that uses state-of-the-art electronics -- including a bright Polymer LED display. The units can feed chlorine, sulfur dioxide or ammonia gas. The valves can be configured to operate in either flow proportional or step-rate cont rol modes. And they can be operated in the field four ways - fully automatic, electric/manual, and two methods of manual.
Chlorinators Inc.
Stuart, FL
Tel: 800-327-9761
Web: www.regalchlorinators.com
Diaphragm pumps
Barnant’s Air Cadet® line of newly enhanced diaphragm vacuum/pressure pumps are designed for industrial, environmental, life sciences, and OEM applications. Enhancements include improved diaphragm durability, increased vacuum and pressure performance, and upgraded switch control. The pumps are compact, chemical resistant and suited for high-flow and low-flow applications. 115 vAC, 230 vAC, and portable 12 vDC motor models are available - from single-head and dual-head units to complete vacuum/pressure control stations. The pumps now feature a Dacron® reinforced diaphragm for increased durability. The pumps provide vacuum to 23” Hg, pressure to 23 psig, flow to 14 LPM or 17 LPM (depending upon model), and a per-head free-air capacity of 0-0.9 cfm.
Barnant Co.
Barrington, IL
Tel: 800-637-3739
Web: www.barnant.com
Peristaltic pumps
Watson-Marlow Bredel offers the 520/620 NEMA, SPX and 520RE LoadSure Elements peristaltic pumps. The 620 and 520 pumps are ideal for chemical metering applications, such as sodium hypochlorite, ferric chloride, alum and polymers. The new 520RE LoadSure Elements range of peristaltic pumps, designed for increased overall performance and pressure capabilities, can handle pressures up to 100 psi.
Watson-Marlow Bredel Pumps
Tel: 800-282-8823
Web: www.watson-marlow.com

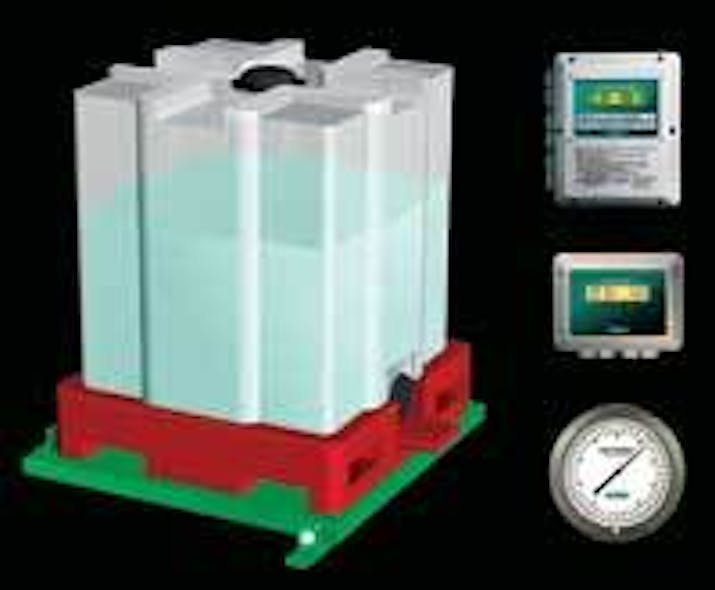

IBC tote scale
The Tote Bin Scale from Force Flow allows operators to accurately monitor chemicals fed from IBC type totes. Users simply place a tote on a platform and monitoring begins. Systems can help prevent over and under feed conditions and also enable the documentation of amount fed. The scales are available with the Wizard 4000® Digital Indicator, the Solo® 1000 or the Century® Hydraulic Dial.
Force Flow
Concord, CA
Tel: 800-893-6723
Web: www.forceflow.com
Tablet chlorination system
PPG Industries has introduced the newly designed PowerPro® chlorination unit incorporating the Accu-Tab® chlorinator and tablets. The Accu-Tab System’s patented chlorinators and unique 3-inch calcium hypochlorite tablets together allow for consistent and controllable chlorine dosages. The tablets are specifically formulated for controlled erosion. The PowerPro chlorination units are designed specifically for use with the Accu-Tab tablets and chlorinators. The units provide a compact, turnkey system. The systems are available with multiple chlorinators, automatic controllers, weight scales, and are SCADA compatible. Long-term reliability makes the system an option to chlorine gas cylinders and sodium hypochlorite (liquid bleach) for sanitizing water systems.
PPG Industries Inc.
Monroeville, PA
Tel: 800-245-2974
Web: www.ppgaccu-tab.com/ind
Digital pH-controller
Burkert’s Digital pH-Controller Type 8205 lets water/waste treatment professionals undertake static or dynamic process pH control. This controller features a 0-14 pH measurement range and ± 0.2% accuracy. Offering on/off and continuous process control, the unit combines a pH-sensor and PID-controller/display within a single splash-proof, plastic NEMA 4 enclosure. The controller can be integrated with the sensor or remote via panel or wall mount. The Type 8205 features a 4-20 mA output signal, two relay or transistor pulse outputs and one alarm output. Output signals control valves/pumps via standard output impulses. These vary in frequency/duration according to user-defined parameters and pH value set point. Chemical-specific pH titration curves can be programmed into the unit.
Burkert
Tel: 949-223-3100
Web: www.burkert-usa.com
Dechlorination systems
Integra Chemical Co. offers its Vita-D-Chlor dechlorination systems and chemicals. Using ascorbic acid (vitamin C) chemistry, the system is the only NSF certified dechlorination product which is 100% organic, completely soluble, and provides a safe and rapid method of dechlorination. The product meets the new EPA regulations for dechlorinating water prior to flushing into streams, rivers and lakes.
Integra Chemical Co.
Renton, WA
Tel: 800-322-6646
Web: www.vita-d-chlor.com
Disinfection
ITT-Portacel offers gas and liquid vacuum dosing products and systems for the disinfection of drinking water and wastewater. The company’s product range encompasses manual and automated gas and liquid dosers, residual chlorine analyzers, evaporators, change over systems, ejectors, vacuum regulators, gas header systems and ancillaries, gas detection systems, and package disinfection systems.
ITT-Portacel
The Woodlands, TX
Tel: 281-363-2091
Web: www.portacel.com
Peristaltic pumps
Blue-White’s Flexflo A-100N Series of Peristaltic Pumps may now be ordered with optional Polyurethane tubing (Tygothane). Tygothane provides excellent resistance to oils, greases and fuels; has high tear resistance; and meets FDA criteria. The pumps are self priming, even against line pressure. Their de-gassing design eliminates gas or air accumulation in the head. They are offered with flow rates to 95.1 gpd, pressure to 100 psi and accuracy of +/- 1% repeatability full range. The pumps also feature a patented Tube Failure Detection (TFD) Alarm System and Flow Output Verification Alarm System (Requires Micro-Flow Sensor, sold separately).
Blue-White Industries
Huntington Beach, CA
Tel: 714-893-8529
Web: www.bluwhite.com
