Products & Services: Sludge

June 1, 2010
Infilco Degremont's 2PAD is a two-phase anaerobic digestion system designed to enhance digestion processes and to satisfy Class A biosolids requirements in accordance with EPA's 40 CFR Part 503 regulations.

Anaerobic digestion system

Infilco Degremont's 2PAD is a two-phase anaerobic digestion system designed to enhance digestion processes and to satisfy Class A biosolids requirements in accordance with EPA's 40 CFR Part 503 regulations. Two key sequential phases take place in anaerobic digestion, the acidogenesis and methanogenesis phases.
Infilco Degremont, Inc.
Richmond, VA
Tel: 804-756-7600
Web: www.degremont-technologies.com
Circle No. 206 on Reader Service Card

Sludge drying

Siemens Water Technologies' thermal sludge belt dryers are suited for heat recovery using low energy or "waste" heat sources. In the thermal drying process, the final product is stabilized in a dry granular form that reduces the costs associated with storage, delivery, use or disposal. The dry product can be beneficially used as renewable energy to reduce carbon footprint. The dryer's low-profile compact design is safe and easy to operate and maintain. Variable speed belts fine tune product moisture content to meet final use or disposal requirements.
Siemens Water Technologies
Tel: 281-360-4971
Web: www.siemens.com/dryers
Circle No. 205 on Reader Service Card

Sludge pump

The Double Disc™ pump from Penn Valley incorporates a repair-in-place hinged housing design that allows complete servicing without disturbing the piping. With flow rates ranging from 1-1,400 gpm, the pump is routinely used for sludge handling applications to include: belt press feed, centrifuge feed, rotary press feed, thickener feed, thickened sludge, digested sludge, primary sludge, scum and septage.
Penn Valley Pump Co.
Warrington, PA
Tel: 215-343-8750
Web: www.pennvalleypump.com
Circle No. 204 on Reader Service Card

Sludge mixer

The Sodimate MBV paddle sludge mixer is the smallest sludge mixer on the market.
Its unique conception and efficiency comes from its orientable paddle blades that allow intimate mixing of the lime and dewatered sludge. It also eases maintenance when paddle blades need to be replaced. The mixer can mix from 0.5 to 15 tons/hr of dewatered sludge.
Sodimate Inc.
Chicago, IL
Tel: 773-665-8800
Web: www.sodimate-inc.com
Circle No. 207 on Reader Service Card

Sludge reduction system

The Fluidyne ISAM™ (Integrated Surge Anoxic Mix) sludge reduction system incorporates a constant level anaerobic basin, followed by a surge/anoxic/mix tank, and an aeration basin that incorporates BOD, TSS and nitrogen removal along with sludge reduction (as much as 85% compared to conventional activated sludge processes) in an integrated system. Wastewater enters a covered anaerobic reactor for pretreatment, sludge thickening and sludge destruction.
Fluidyne Corp.
Cedar Falls, IA Tel: 319-266-9967 Web: www.fluidynecorp.com
Circle No. 200 on Reader Service Card

Level monitoring

The Sultan 34 Dual is a non contact acoustic wave transmitter that can be used for measuring the level of liquids, slurries and solids with the versatility of measuring two different applications at once. The unit emits high powered acoustic wave transmit pulses which are reflected from the surface of the material(s) being measured. The reflected signals are processed using specially developed software to enhance the correct signal and reject false or spurious echoes. Advanced receiver circuitry is designed to identify and monitor low level return signals even when noise levels are high.
Hawk Measurement
Tel: 888-429-5538 Web: www.hawkmeasure.com
Circle No. 201 on Reader Service Card

Drying systems

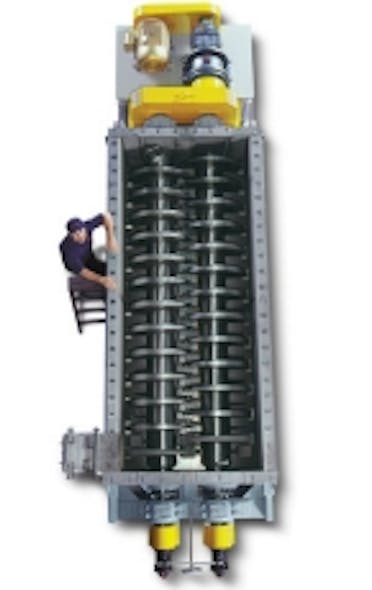

Komline-Sanderson offers complete biosolids drying systems capable of handling in excess of 1,000 tons of wet cake per day. Dryers are designed to use steam or thermal fluid with heat supplied from the combustion of natural gas, digester gas, landfill gas, or fuel oil. Excess heat from combustion engines or turbines can also be used to heat thermal fluid or produce steam. The dryer's shaft, hollow paddles, and trough are all heated. The robust design and low speed with minimal rotating parts results in reduced maintenance costs. Indirect drying using the airtight dryer results in minimal off-gas volume which allows simplified odor control systems and safe operation.
Komline-Sanderson
Peapack, NJ
Tel: 800-225-5457
Web: www.komline.com
Circle No. 202 on Reader Service Card

Sludge dredge

The SRS Crisafulli remote control FLUMP dredge is designed to remove settled wastes and other by-products from settling ponds or lagoons. It is equipped with discharge pumps in sizes 3", 4", 6", and 8". The integrated system is comprised of major standard and optional components – i.e., flotation system, primary and secondary motors, hydraulic and electrical systems, cutterhead, pump, ladder, manual or programmable computerized controls, cabled traverse system, and Crisafulli Integral Floating Discharge System. Four models are offered with standard dredging depths to 12 feet. Custom depths to 30 feet.
SRS Crisafulli
Tel: 800-442-7867
Web: www.crisafullipumps.com
Circle No. 203 on Reader Service Card
