Let’s Talk Turkey (Processing)

Feb. 2, 2019
Virginia Poultry recently installed several liquid/solids separation screens for its turkey feather and offal processing. The screens, provided by Lyco Manufacturing, reduce water consumption and are a showpiece for optimized throughput and operational efficiency.
Virginia Poultry streamlines liquid/solids separation and reduces water usage

By Patrick Roberts

Located in Hinton, Virginia, in the heart of the Shenandoah Valley, Virginia Poultry Growers Cooperative (VPGC) is America’s eighth largest turkey processor, and the second largest in Virginia. Supplied by 165 contract turkey growers spread throughout the Shenandoah Valley of Virginia and West Virginia, the cooperative processes 25,000 tom turkeys averaging 40–45 pounds each, every day, five days per week — producing more than 250 million pounds of turkey annually. The plant 100-percent debones the whole turkey, sending the parts out to other plants for further processing.

Incorporated in 2004, VPGC has, since the beginning, been committed to producing an exceptional product. It was one of the original processors of antibiotic-­free (ABF) and organic turkey products. Its programs have consistently been recognized by the trade as superior, and verified independently as exceeding government and industry standards. VPGC administers a proprietary organic program that carries the USDA Certified Organic Seal.

Employing 560 people working within its 250,000-square-foot, state-of-the-art processing plant, Virginia Poultry’s business continues to grow while the cooperative commensurately invests into upgrading its facilities and equipment. Recently, these upgrades included installing new liquid/solids separation screens for its feather and offal processing.

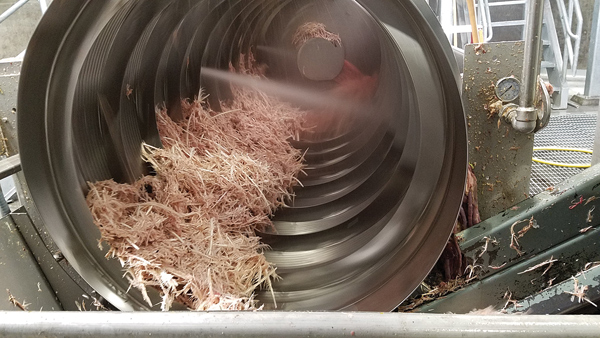

One of Virginia Poultry’s newly-installed liquid/solids separation screens.

Screening Efficiency

“We put in a new primary screen for liquid/solids separation of our feathers,” said Phil Miller, engineering manager at Virginia Poultry. “After the birds are killed, bled out and scalded, they are feather picked,” he explained. That feather-laden water stream, flowing at about 500 gallons per minute (GPM), runs through the new liquid/solids separation screen, which separates the feathers from the water. The feathers go to rendering while the de-feathered water is circulated back to the feather picking area for reuse and combined with make-up water. “This is a very efficient system for the continual reuse of this high-GPM flow of water,” said Miller.

“We also installed two new liquid/solids separation screens on a line separate from the feather flow in our offal area,” added Miller. “[There’s] a primary screen that catches all of the water that flows from the evisceration process, and a secondary screen that captures smaller particulate before the offal water stream exits the building and enters our wastewater treatment plant.” The net result from using two screens, he explained, is that more organic solids are screened out of the wastewater, which not only increases content for rendering but also decreases the amount of chemicals required for wastewater treatment.

The screens are manufactured from wedge-wire stainless steel. The triangular shaped wedge wire is less apt to plug than sheets that are perforated.

Following evisceration and inside/outside bird wash, the turkey goes into a chiller.

The liquid/solids separation equipment selected are single-rotary-drum screens from Lyco Manufacturing. The screens utilize rotary action to separate turkey solids from the water. The water stream enters the drum from the inside and screens out solids to within 0.04” with the primary screens, and to 0.02” with the secondary screen. The screens are manufactured from wedge-wire stainless steel. The triangular shaped wedge-wire is far less apt to plug than sheets that are perforated.

Traveling Spray CIP Conserves Water Usage

In poultry processing facilities, the efficient operation of rotary screens is diminished when poultry fats and other slick particulates clog the screen openings. Many screens let material pass through because they do not have the ability to manage the volume of particulate matter in the slurry. This is a common problem with traditional screening equipment, limiting the volume of wastewater and load that can be moved through a screen, which causes water and particulate to make their way through unfiltered.

The screens enable more organic solids to be screened out of the wastewater, which increases content for rendering and decreases the amount of chemicals required for wastewater treatment.

“Conventional drum screens used in poultry processing utilize a spray bar for keeping the drum face from becoming clogged, which typically can consume up to 120 gallons of water per minute,” said Jeff Zittel, vice president of applications and marketing with Lyco. “The feather, offal and secondary screens in use at Virginia Poultry, however, are much more water efficient.”

Each of the three screens utilizes a unique, mechanical, traveling-­spray clean-in-place (CIP) system. Using only two spray nozzles moving back and forth, the system effectively keeps the screen from clogging but consumes only 10 GPM — approximately 10 percent of the water used with conventional spray bars.

“Turkey processing is a high-water-usage activity,” explained Miller. “We are processing 900,000 to 1,000,000 gallons of water each day through our on-site wastewater treatment plant. For every gallon we buy, we have to pay to get rid of this high-fat and high-protein-content water. This was our main reason for putting in these Lyco rotary-drum screening systems — to reduce water consumption.”

Equipped with the low-water-usage traveling sprays, the two primary screens and the secondary screen combined can save the plant up to 140,000 GPD of water usage when compared to spray bars in use on conventional drum screens.

“From a maintenance viewpoint, running one production shift per day, we devote a full eight-hour second shift to cleaning and sanitation of the entire plant,” said Miller. “With the CIP spray system, the screens are pretty much self-cleaning, which is a definite positive.”

Two spray nozzles moving back and forth keep the screen from clogging and consume only 10 GPM.

Mechanical Integrity

Because liquid/solids separation equipment is subjected to long periods of operation under stringent and harsh conditions, many system designs do not satisfactorily maintain consistent effluent flow, particulate capture and uptime. For a liquid/solids separation system to be effective in capturing high levels of primary and secondary offal while maintaining high-uptime operability, it must be heavy-duty, durable, and engineered to be user-friendly, tool-friendly, mechanic-friendly, and operate with minimal maintenance.

Mechanically, the Lyco screens are designed with a number of unique features. For example, inside the wedge-wire drum, full continuous flights have been welded into place. This permits the drum to handle surges more efficiently. All dry components are positioned outside of the frame where they are easily accessible for maintenance. And, automatic jack screws are also provided.

Centrifugal-Cast Drum Support Rings

A key aspect of the mechanical integrity of Virginia Poultry’s rotary drums is the centrifugal casting of their drum support rings. It is common knowledge that rotating drum screens will eventually break apart because of an inherent weakness in the way virtually all drum screens are designed and manufactured: the stainless-steel plate is rolled and welded. It is virtually impossible to get a drum screen of this size within close enough cylindrical tolerance, after having been rolled and welded, to keep it from eventually breaking apart. Consequently, all drum screens that have been conventionally manufactured have a limited life.

But, that is not the case with the three Lyco single-drum rotating screens in place at the Virginia Poultry plant. These drum screens are manufactured completely differently: there is no rolled plate and there is no welding. The drum-supporting rings have been centrifugally cast to within a 15,000th-of-an-inch roundness. Molten metal is poured into a cast that is spinning at high speed. As a result, they maintain their roundness for the life of the drum, and they do not break.

“When it came time to investigate screens for our plant, we looked at a number of different options,” added Miller. “But these Lyco single-rotary-drum screens are very robust, and are very well constructed. We felt they were the best choice for our plant’s processing operations.” IWW

About the Author: Patrick Roberts is a freelance writer focusing on topics in the food processing industry.
