Cues offers various self-contained portable systems for CCTV inspection.

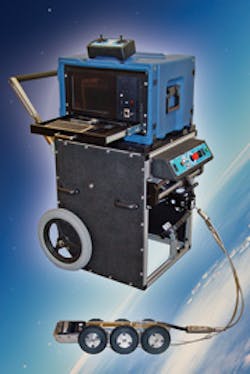

Portable CCTV
Cues offers various self-contained portable systems for CCTV inspection. Portable systems are available with the functions found in a truck-mounted system but have the ability to achieve easement access and can be wheeled off-road for maximum versatility and mobility. Users can perform inspections and surveys of pipelines, wet wells, manholes, sewer treatment plants, steam generators, tanks, vessels, and other areas that are difficult to reach. The fully-integrated portable CCTV inspection systems feature the latest in digital control and diagnostic technologies. Systems are available for use as a stand-alone portable system or can be integrated into a dedicated vehicle. Cues Inc. www.cuesinc.com
Automation systems
Mitsubishi Electric Automation has launched a website to provide solutions specifically for the oil and gas, water and wastewater, and power generation industries. The new site is a dedicated resource that identifies common process industry challenges and how the company's systems are designed to overcome them. The site provides solutions to lower operation costs, save energy, minimize downtime, and reduce errors. It also discusses migration strategies, open connectivity and visualization. Mitsubishi Electric Automation Inc. http://mitsubishiprocess.com
Pressure transducer
Hammer Union pressure transducers from Automation Products Group are now ATEX (II 1G Ex ia IIB T4 Ga) and IECEx (EX ia IIB T4 Ga) certified to provide long life in harsh oil patch environments in applications such as mud logging, cementing, fracturing, acidizing, and measuring while drilling (MWD). It features shock and vibration resistance (100 g for 11 msec), while providing better than +/-0.25% combined linearity, hysteresis and repeatability (BFSL) on pressure ranges up to 20,000 psi. It is available with either 0 to 5 VDC or 4-20 mA output and features industry standard electrical connectors for simplified installation. Automation Products Group Inc.www.apgsensors.com
Oil in water monitoring
The new InfraCal 2 Field Portable IR Analyzer from Wilks can measure down to 0.1 ppm oil in water accurately, on-site and in less than 15 minutes. The analyzer provides added sensitivity and features for today's most challenging environmental applications. It is ideal for non-technical users, and they combine improved electronics, which have significantly increased signal-to-noise ratio for greater performance. A touch screen intuitive display allows for a multitude of new options and features, including multiple calibrations, internal data logging and data transfer capabilities, alarm functions to ensure results are acceptable, and security/password settings to avoid unauthorized changes. Wilks Enterprise Inc.www.wilksir.com/oilgrease-analyzers
Corrosion resistant anti-seize
Chesterton introduces 783 ACR Corrosion Resistant Anti-Seize designed to protect threaded fasteners up to 900°C (1652°F). With exceptional resistance to water washout and corrosion, it is well suited for use in corrosive environments such as refineries, chemical plants, coastal areas, wastewater, and marine environments such as off-shore oil platforms. 783 ACR is ideal where corrosion is the primary cause of bolt seizure. A.W. Chesterton Companywww.chesterton.com
Centrifugal blower
The Hoffman Revolution delivers up to 45% energy savings, provides increased reliability with little or no maintenance and is factory prewired and tested in an ergonomically designed sound enclosure for plug-and-play operation. Technology improvements allow the footprint of the Revolution to be significantly smaller than traditional blowers, which reduces installation costs and enables it to function in places traditional blowers cannot. Gardner Denver Inc.www.hoffmanandlamson.com

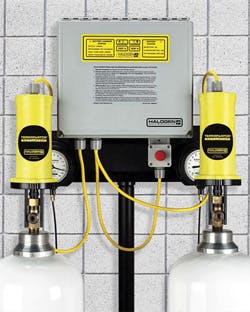

Emergency gas shut-off
This Terminator emergency shutoff system sequentially closes 150 lb. cylinder valves containing toxic gas in less than five seconds when activated from remote sensors and switches. Halogen's Gemini controller has a self-contained battery system that guarantees the operation of the motorized closing mechanism even during a power failure. This dual-torque, microprocessor-controlled system applies 40-foot pounds of torque for emergency closures of the cylinder valve. It is also designed to only close when electronically activated. Halogen Valve Systems Inc.www.halogenvalve.com
