Pressure pump control valve

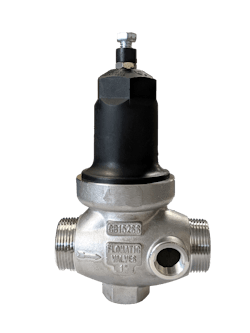

Flomatic has introduced the Model Cycle Gard IV CB152SST, a new stainless-steel, direct acting, constant pressure pump control valve with tappings. This flow-efficient globe-style, all stainless-steel body is equipped with 1-inch NPT size female inlet threads and a 1-inch NPT union end female outlet connection. The valve's standard pressure range is 15–75 psi with an optional 15–150 psi range. The valve body maximum pressure rating is 400 psi. All the valve's internal parts are corrosion resistant with a stainless-steel spring and fasteners for long service life. The valve is equipped with additional NPT tapped bosses for pressure gauge, water tank and/or a pump pressure switch. It maintains a preset operating pressure and reduces rapid pump cycling, offering proven protection for wells and booster pumps.

www.flomatic.com
