Designing Industrial Water Filtration Systems for Corrosive Environments

In my experience designing water filtration systems for demanding industrial applications, I have learned one unshakable truth: corrosive environments are unforgiving. So, it is often important to consider the environmental factors side by side with factors such as flow rates and pressure differentials in these system designs.

But, how does one design an industrial water filtration system for corrosive environments?

Designing industrial water filtration systems for corrosive environments demands specialized design considerations to ensure the survival of the system against the relentless assault of aggressive chemical compositions, pH levels, temperatures and flow dynamics. When designing an industrial water filtration system that should last in corrosive environments, every choice, from material to layout, plays significant roles and can have ripple effects.

Here is how I will approach designing an industrial water filtration system for corrosive environments from the ground up.

Know your water chemistry

Source water chemistry is a significant point to start in determining possible corrosion in a water filtration system. There is more to water treatment than just ph levels — temperature, contamination and chemical compositions can have effects on the health of your industrial water filter that you may never have even thought of.

For example, source waters with a pH below 6.5 and greater than 8.5 can strongly exacerbate corrosion. Very acidic or alkaline water can over time damage certain metals and plastics. This effect can be further exacerbated with higher temperatures — the corrosion rate often increases with the temperature, particularly in the case of metals. Even slight changes in temperature can double the corrosion rates in metal piping systems, says the EPA. Additionally, process water with salts, acids, oxidizers or industrial byproducts can present unique problems, including pitting corrosion, scaling or stress cracking that can impact system performance and life, and require varying materials and protective tactics.

Understanding the source water chemistry is a key design factor and should inform your decision on materials.

Material selection

The correct materials can add decades to the life of a system, and the wrong ones will fail within months. The materials such as CPVC, PVDF, PTFE, FRP and stainless steel alloys possess their own advantages and disadvantages.

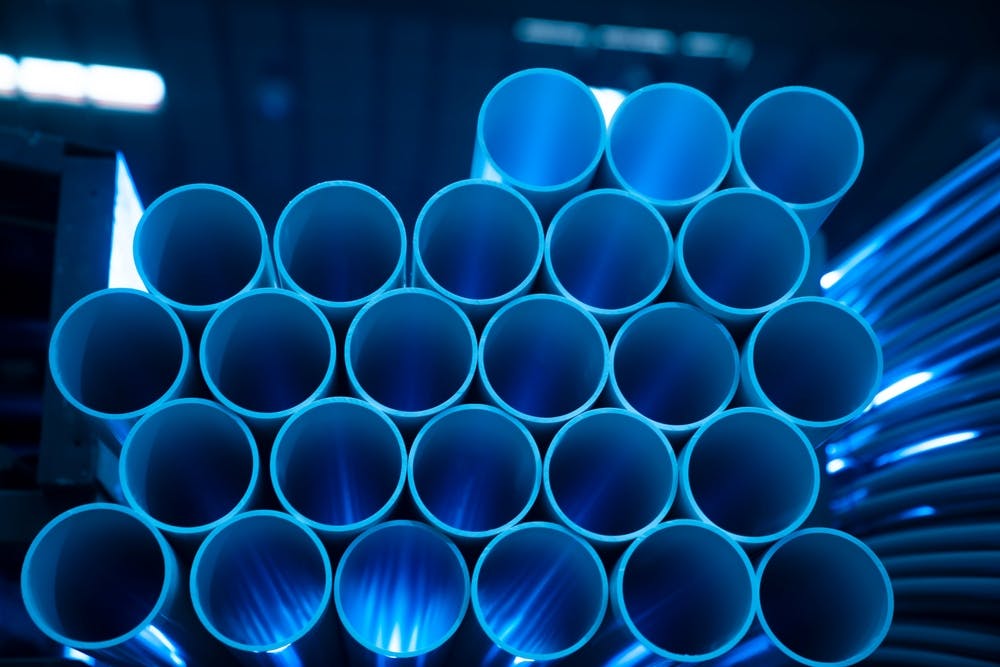

CPVC (Chlorinated Polyvinyl Chloride): With high resistance to an extensive list of acids and bases, this cost-effective material can be used for moderate temperature applications. However, it might not be appropriate for situations in excess of 200°F (93°C). In addition, CPVC tends to become brittle with age due to UV exposure, exposure to a constant shaking or from exposure to high and consistently applied flexural load.
PVDF (Polyvinylidene Fluoride): I always use this for high-purity or highly aggressive chemical apps. PVDF possesses excellent chemical resistance and elevated temperature stability, which makes it the perfect selection for harsh chemical situations. And though more expensive, I have found it worth every penny for its abrasion resistance and long-term dependability.
PTFE (Teflon): Chemically inert and nearly universally resistant. PTFE is ideal for highly corrosive media, but its lack of structural integrity compared to other materials, limits its application in high-pressure systems. Therefore, it is often used in linings or gaskets rather than load-bearing components.
FRP (Fiberglass Reinforced Plastic): FRP combines the strength of fiberglass with the corrosion resistance of plastic, making it suitable for structural components exposed to corrosive environments. It is lightweight, strong and cost-effective, though it may need added coatings to resist UV or chemical degradation.
Stainless Steel Alloys (such as 316L): These work well in mildly corrosive environments but can corrode in the presence of chlorides or acidic conditions. Alloy upgrades or coatings may be necessary for harsher applications.

System design considerations

Filter media and housing compatibility

The filter media and housing are an integral part of the filtration system and as such it is imperative that they follow the same material selection process. I always recommend matching the filter material to the water chemistry. For instance, polypropylene filters are great for acids and oxidizers, but not for hydrocarbons. PTFE or PVDF filters, though costlier, are far more versatile in aggressive settings.

Housings, too, must be compatible. Mixing stainless steel housings with highly acidic or chloride-laden water is a recipe for disaster unless you use protective linings. Mismatched materials can also lead to galvanic corrosion if metals are used together improperly.

Avoid dissimilar metals: Galvanic corrosion is real

One of the most common, yet often overlooked culprits of early failure is galvanic corrosion — the action of galvanic cells under attack when two unlike metals are in contact in a conductive liquid.

At one plant that I consulted for, the replacement of a brass valve with one of stainless steel in the line also of stainless steel resulted in extensive pitting and finally pin-hole leaks in a relatively short time. That small mistake led to thousands of dollars in repairs. If different metals must be used, I always recommend isolation techniques like dielectric unions, gaskets or coatings to break the electrical path.

Protective coatings, linings and smart monitoring

Sometimes it is not enough just to have the right material. Protective linings, whether rubber, epoxy or a fluoropolymer coating, can lengthen the life of metallic or composite parts by years. I have seen a well-applied coating take a carbon steel tank that was at the end of its life and extend its life by another 10 years.

But what excites me most these days is how smart monitoring is changing the game. Sensors that detect corrosion potential, pressure changes or chemical spikes let teams act before problems escalate. With smart monitoring, predictive maintenance has become the new standard, especially in mission-critical applications.

Design for flow variability and pressure surges

Filtration systems in industrial settings rarely operate under steady-state conditions. Flow rates shift. Pumps cycle. Valves open and close. These fluctuations can wreak havoc on a system that was not designed for variability.

Incorporating pressure relief valves, expansion joints and flexible supports can absorb these variations, reducing stress on the system components.

Pressure relief valves to protect from surges.
Flow regulators and bypass loops to manage variable demand.
Expansion joints and flexible supports to absorb movement and vibration.
Redundant filtration trains that allow for maintenance without downtime.

Plan for maintenance from day one

A beautifully engineered system that is impossible to maintain will result ultimately in a failure. Your design should include:

Access Points: Incorporating access panels and removable covers allows for easy inspection and maintenance of filters and other components.
Drain Ports: Strategically placed drain ports facilitate the removal of accumulated debris and prevent stagnant water, which can contribute to corrosion.
Tool-less filter housings for faster replacement cycles.

Routine inspections and pre-scheduled filter changes should be part of your operational culture. Proactive replacement might feel like added cost, but it is pennies compared to the price of unplanned downtime.

Safety

There is one final reason why robust system design matters: safety. Corrosion can compromise containment, leading to leaks of hazardous materials. While pressure failures or sudden releases can put lives at risk. Designing your industrial water filtration systems for corrosive environments requires a comprehensive approach and by designing with corrosion in mind, you are not just protecting your equipment, you are also protecting your people.

Final thoughts

If there is one thing I have learned in designing systems for corrosive environments, it is that shortcuts never pay off. Every material, component and design choice must be intentional, grounded in the realities of your prevailing factors, water chemistry and operational needs.

Designing your system with these in mind will guarantee that your water filtration system continues to function with minimal downtime and consistent operational efficiency.
