Chemical metering pump

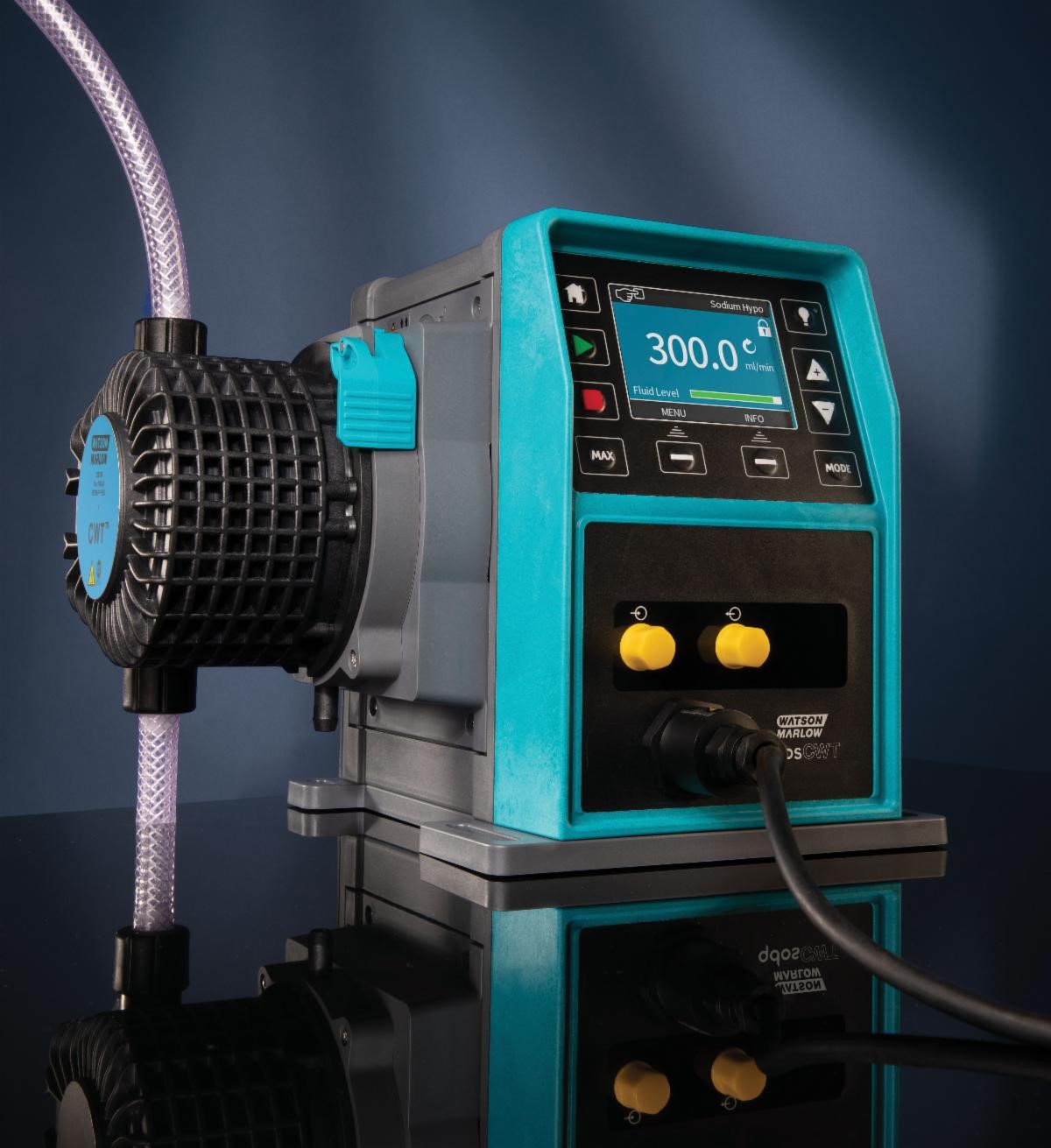

Watson-Marlow Fluid Technology Group (WMFTG) is unveiling the next performance level in its range of industry-leading Qdos chemical metering pumps. Qdos Conveying Wave Technology (CWT™) extends the capabilities of peristaltic pump technology and offers longer service life than traditional tube-based designs. CWT™ also offers important advantages in water treatment applications; users will benefit from superior accuracy in chemical metering and dosing tasks, and the elimination of expensive ancillary equipment. Qdos CWT pumps achieve their peristaltic action by operating a unique fluid contact element that, in effect, offers the same basic function as the tube of a conventional peristaltic pump. As well as the elimination of vapour locking, the element delivers stable, reliable performance, even with fluctuations in ambient temperature and pressure. Furthermore, the robust mechanical design provides consistently high accuracy for the life of the pump. To achieve the peristaltic pumping action, the CWT pumphead incorporates an EPDM element rather than a tube, which acts against a PEEK track. The resulting fluid contact element is subjected to very low stress levels, meaning the Qdos CWT pump will deliver significantly longer service life than a traditional pump.

Watson-Marlow Fluid Technology Group

www.wmftg.com
