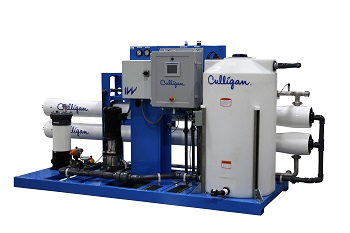

ROSEMONT, Ill. – US water treatment company Culligan International has launched an Industrial Water (IW) Reverse Osmosis System membrane system to treat a variety of industrial and commercial water treatment processes.
Available for flow requirements from 22 to 200 gallons per minute (GPM) with salinity levels up to 4,500 parts-per-million (PPM), the system is designed for applications such as the pre-treatment for high-purity requirements, biopharmaceutical manufacturing, water jet cutting, potabilization for drinking water, power generation and more.
Culligan said its configurator tool offers nearly 100 different pre-engineered combinations of features to be built into a perfect reverse osmosis application.
“Our new IW Reverse Osmosis System is a complete solution designed for the most demanding commercial, industrial and municipal applications,” said Matt Burns, product manager at Culligan International.
“Not only does the low-energy membrane technology remove more than 99% of contaminants including dissolved minerals, bacteria and other impurities, but it also produces water suitable for high-purity applications such as boiler feed and ingredient water for food and beverage production.”
Technical specs on the membranes can be seen below:
Model | IW-22 | IW-35 | IW-50 | IW-70 | IW-100 | IW-140 | IW-155 | IW-200 |
Nominal Flow (GPM) | 22 | 35 | 53 | 70 | 100 | 141 | 158 | 200 |
Membrane Quantity | 4 | 6 | 9 | 12 | 18 | 24 | 30 | 36 |
Vessels x Membranes Per Stage | 1x4 | 1x3 | 1x3 | 2x6 | 2x6 | 3x6 | 3x6 | 4x6 |
1x3 | 1x3 | 1x6 | 1x6 | 2x6 | 2x6 |
1x3 |
Pump Size (HP) 60Hz, SS Housing | 7.5 | 7.5 | 15 | 20 | 20 | 30 | 30 | 40 |
Connections (in.) · Feed · Product · Reject | 1.5 1.5 1 | 2 1.5 1 | 2 2 1.5 | 3 2 1.5 | 3 2.5 2 | 3 3 2 | 3 3 2 | 3 3 2 |
Dimensions (in.) Length x Width x Height | 187x47x72 | 148x47x72 | 148x47x72 | 268x47x72 | 268x47x72 | 269x47x79 | 269x47x87 | 269x62x87 |
Weight (lbs.) | 1,400 | 1,550 | 2,000 | 2,800 | 3,000 | 3,500 | 4,000 | 5,000 |
###
